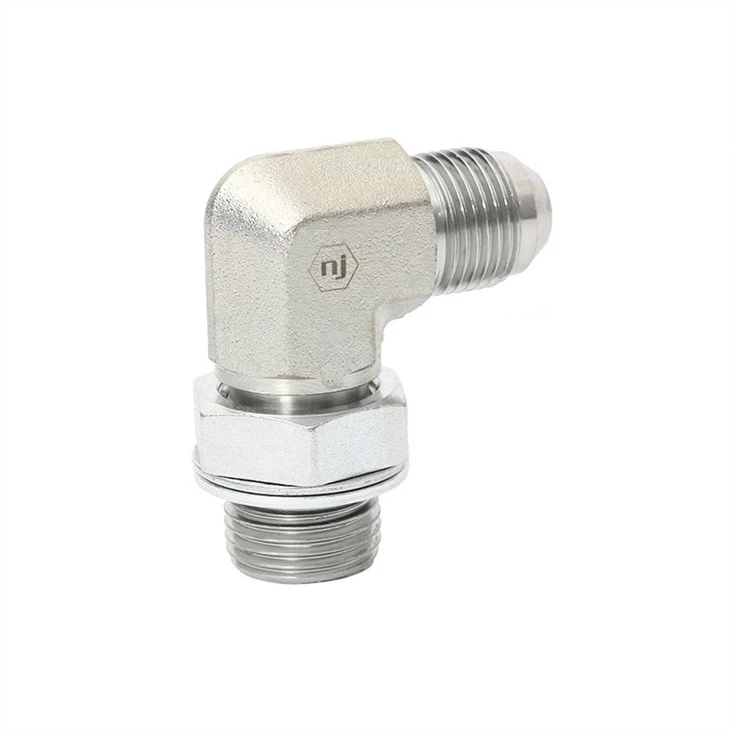

JIC dugó – BSP hidraulikus adapter

E

F

F 端

A

B

S1

S2

1JG9-04-02OG

7/16"×20

G1/8"×28

O011

24.5

26.2

11

14

1JG9-04-06OG

7/16"×20

G3/8"×19

O113

27.5

36.8

16

22

1JG9-04OG

7/16"×20

G1/4"×19

O111

26.6

31.3

14

19

1JG9-05-04OG

1/2"×20

G1/4"×19

O111

26.5

31.8

14

19

1JG9-05-06OG

1/2"×20

G3/8"×19

O113

27.5

35.8

16

22

1JG9-05-08OG

1/2"×20

G1/2"×14

O115

31.5

43.2

22

27

1JG9-06-04OG

9/16"×18

G1/4"×19

O111

26.9

31.3

14

19

1JG9-06-08OG

9/16"×18

G1/2"×14

O115

32.5

43.2

22

27

1JG9-06OG

9/16"×18

G3/8"×19

O113

28.5

35.8

16

22

1JG9-08-04OG

3/4"×16

G1/4"×19

O111

32

33.5

19

19

1JG9-08OG

3/4"×16

G1/2"×14

O115

34.8

43.2

22

27

1JG9-08-06OG

3/4"×16

G3/8"×19

O113

32

36.8

19

22

1JG9-08-12OG

3/4"×16

G3/4"×14

O119

37.9

49.3

27

32

1JG9-10-06OG

7/8"×14

G3/8"×19

O113

37.8

39.2

22

22

1JG9-10-08OG

7/8"×14

G1/2"×14

O115

37.8

43.2

22

27

1JG9-10-12OG

7/8"×14

G3/4"×14

O119

41

49.3

27

32

1JG9-12OG

1.1/16"×12

G3/4"×14

O119

44.2

49.3

27

32

1JG9-12-08OG

1.1/16"×12

G12"×14

O115

44.2

46.5

27

27

1JG9-12-16OG

1.1/16"×12

G1"×11

O217

48

53

33

41

1JG9-16OG

1.5/16"×12

G1"×11

O217

49

53

33

41

1JG9-16-12OG

1.5/16"×12

G3/4"×14

O119

49

53

33

32

1JG9-16-20OG

1.5/16"×12

G1.1/4"×11

O222

53.8

58

41

50

1JG9-20OG

1.5/8"×12

G1.1/4"×11

O222

55.5

58

41

50

1JG9-20-16OG

1.5/8"×12

G1"×11

O217

55.5

58

41

41

1JG9-24-16OG

1.7/8"×12

G1"×11

O217

62.5

63

48

41

1JG9-24-20OG

1.7/8"×12

G1.1/4"×11

O222

62.5

63

48

50

1JG9-24OG

1.7/8"×12

G1.1/2"×11

O224

62.5

63

48

55
